Sandrail 2.2

Floorboards and Engine

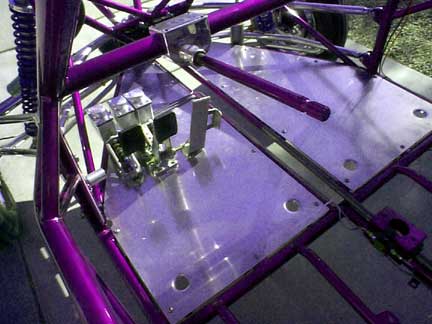

   Here's a shot of the front floorboards cut and mounted with the pedal assembly installed. I punched and dimpled a couple of holes in each floorboard. The hydraulics are plumbed and everything works well.

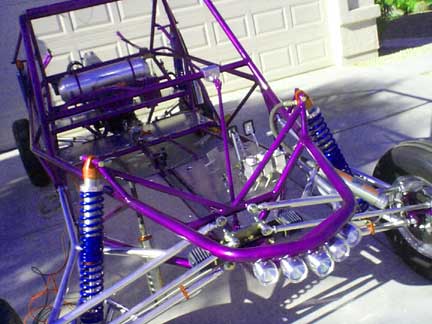

   A look at the front of the car. From here you can see the headlights, front and rear floorboards, pedals, rack and pinion, and some wires dangling on the passenger side that are for the headlights.

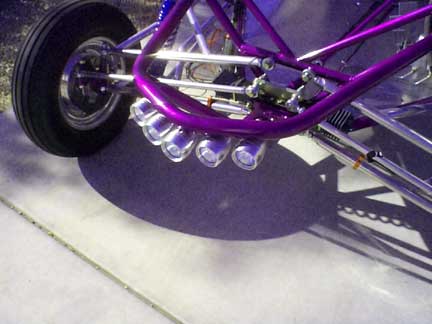

   Here's the bank of headlights.

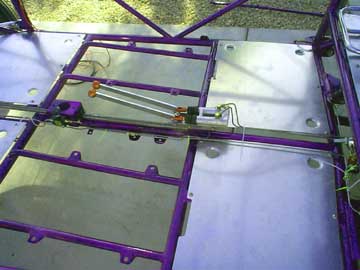

   The rear floorboards and cutting brakes.

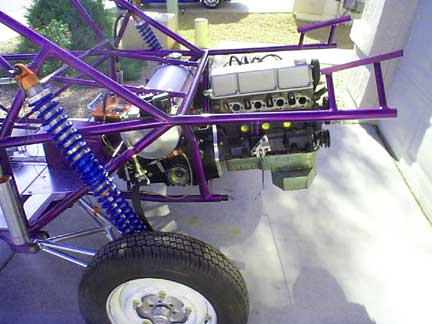

   Here's the engine mounted again. The angled supports at the back end of the car are for the radiator.

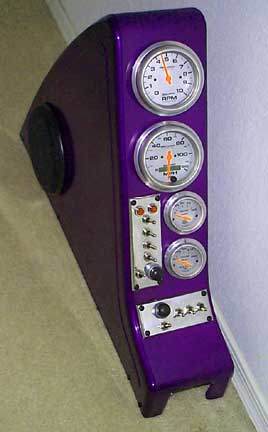

   The aluminum console with guages and switches installed. There's a tach, oil pressure, water temp and speedometer guage, and switches for off-road headlights, street headlights, tail lights, whip light, blinkers, stereo, horn and an extra one, too. Speakers are mounted in the side of the console for a future stereo.
 green car?  gold car?
 blue car?  red car?
